SARAD’s outstanding detector technology defines a new level of Radon monitoring in buildings and at workplaces as requested by the recently introduced EU radiation protection regulations.

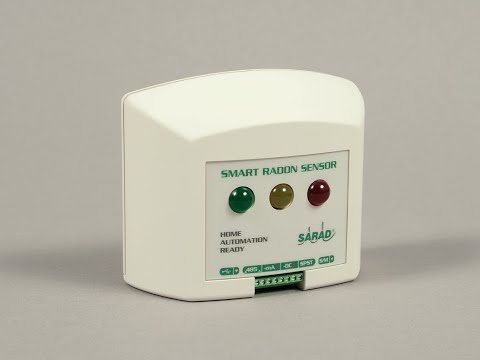

The Smart Radon Sensor offers very high sensitivity in a very small and shapely housing. Due to the detector technology, the instrument will not be affected by any variations of temperature and humidity, external radiation, mechanical shocks, and vibrations. The measurement starts as soon as the power is connected.
Various interfaces for system integration are available. The RS485 network interface can be operated either with the MODBUS RTU (industrial standard) or the proprietary SARAD protocol. The analogous output makes it easy to connect the Smart Radon Sensor to existing PLC’s. A stand-alone ventilation control system can be easily realized by the alert switch output. If no data line is available, the optionally integrated ZigBee wireless interface can be used for connection to a host system. The wide range of power input accepts all in building automation commonly used voltage supplies. For easy installation, all connections are available through a screw terminal.
Two AAA batteries are integrated to continue the measurement in case of power interruptions. All measurement results will be stored locally in non-volatile circular memory.
Sensors for barometric pressure, temperature, and humidity are integrated into the current version as a standard. There are options for CO2 measurement or without both CO2 and pressure sensorsavailable.
The instrument comes with a factory calibration certificate. The calibration process fulfills the requirements of the DIN ISO EN 17025.
We use only high-quality and instrument grade components for this product which is manufactured in our company’s location in Dresden/Germany.
